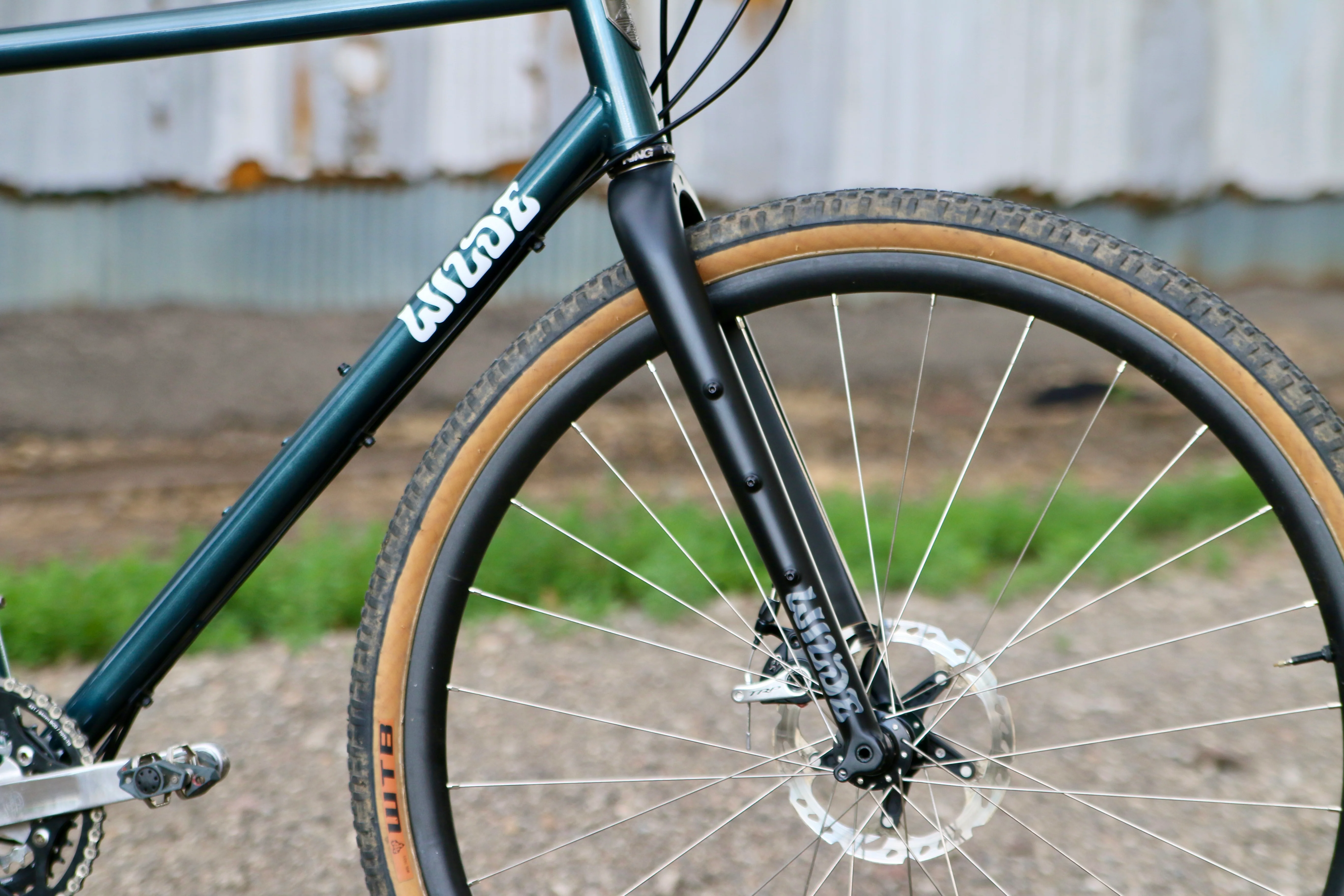

Wayfinder Carbon Fork - 1 1/8" Steerer



The Wayfinder Carbon Fork represents our vision for the ultimate lightweight and versatile adventure fork. It's the perfect upgrade for riders who want to take their cycling further.

It'll fit a ton of existing bikes, works great on modern oversize head tubes, and has all the features that you need for gravel, exploration, and bike packing applications: three pack mounts, internal dynamo routing, internal brake cable routing, real deal fender mounts, and massive tire clearance.

At 470g with an uncut steerer, it's among the lightest fully featured forks on the market and was designed with rider comfort and durability in mind. The fork legs were specifically engineered to soak up bumps and isolate the rider from road chatter, allowing you to go longer and in greater comfort, without sacrificing strength or durability.

We built it to be the go-to solution for riders who need a fork that can do more, so it'll fit great on bikes that have a standard 1 1/8" head tube, EC34/44 head tube or a 44mm head tube.

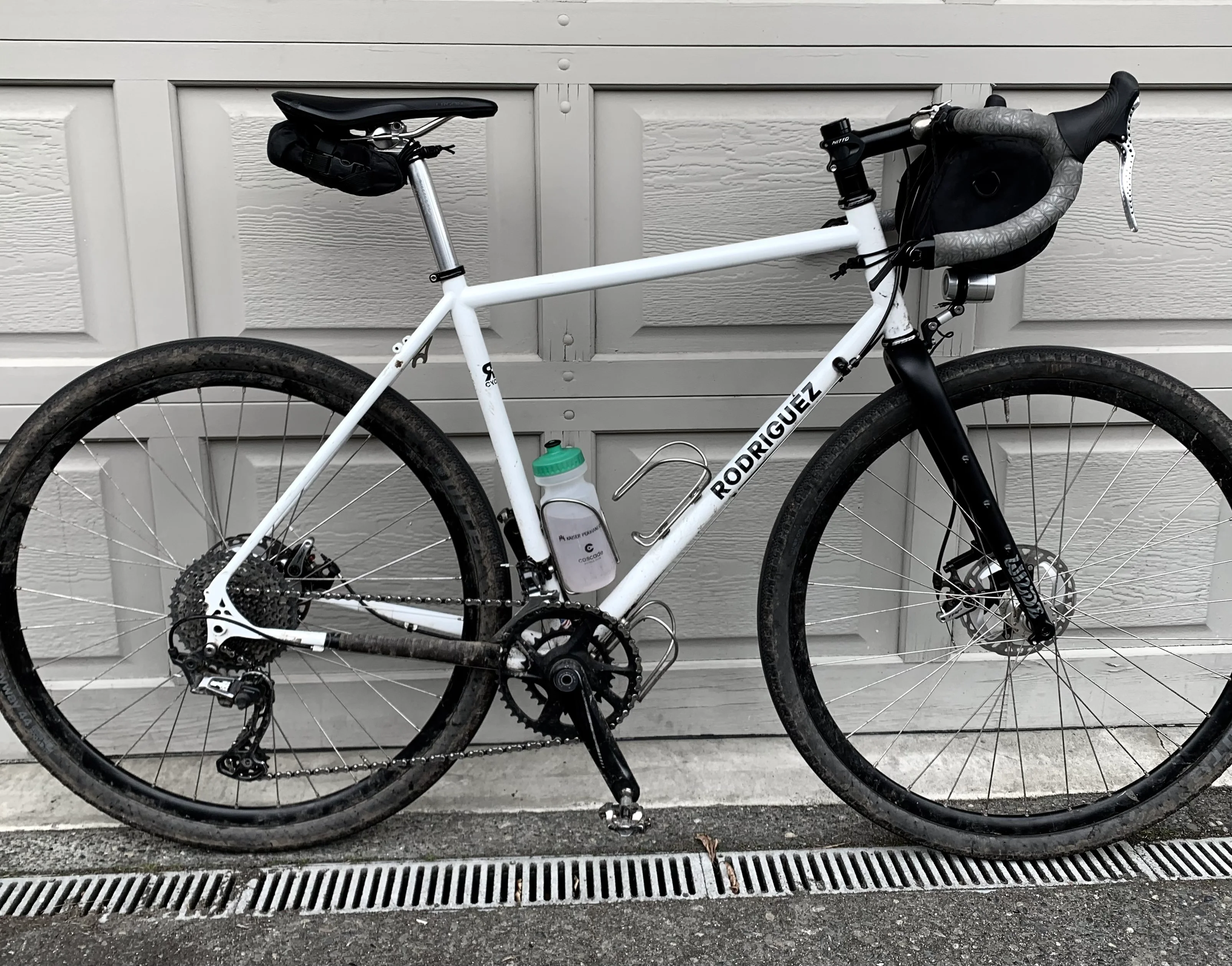

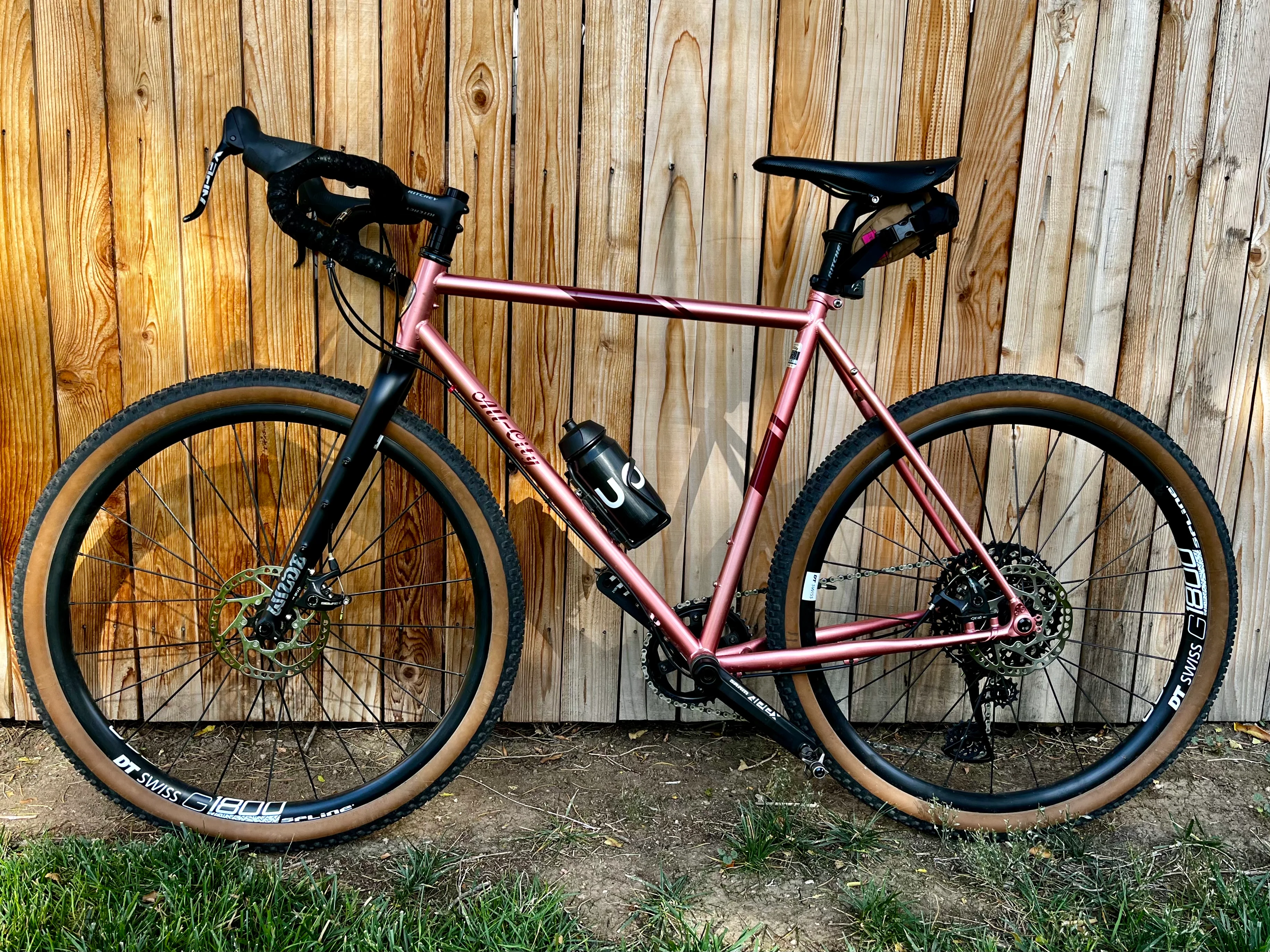

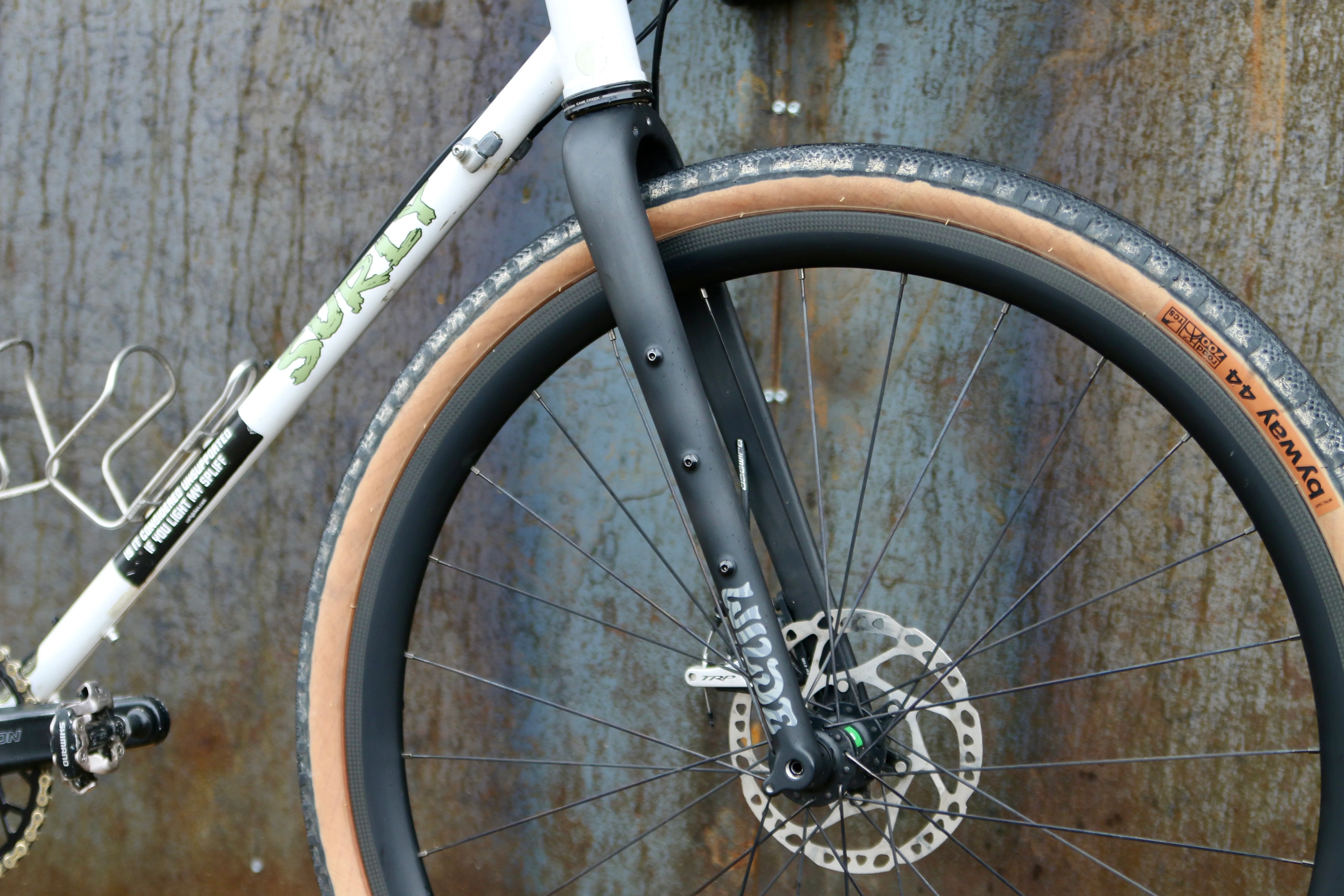

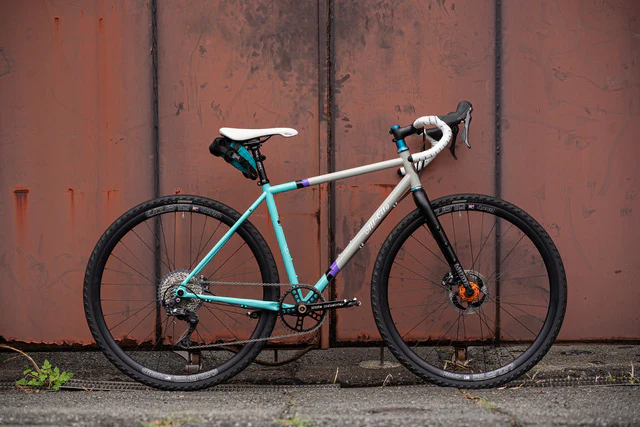

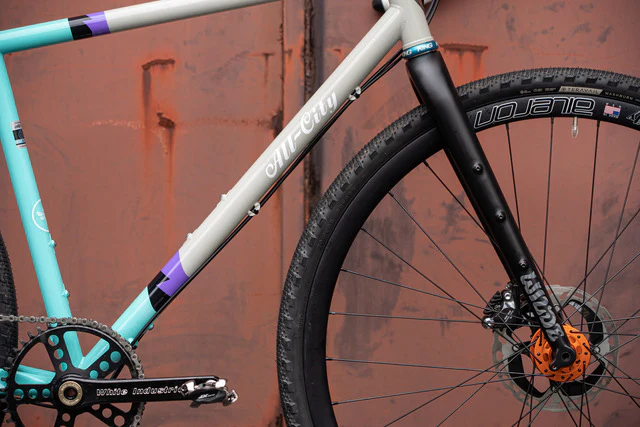

Will work wonderfully to add features and lightness to an older cross or gravel bike, All-City Space Horse, Surly Straggler, Surly Midnight Special, etc.

Features

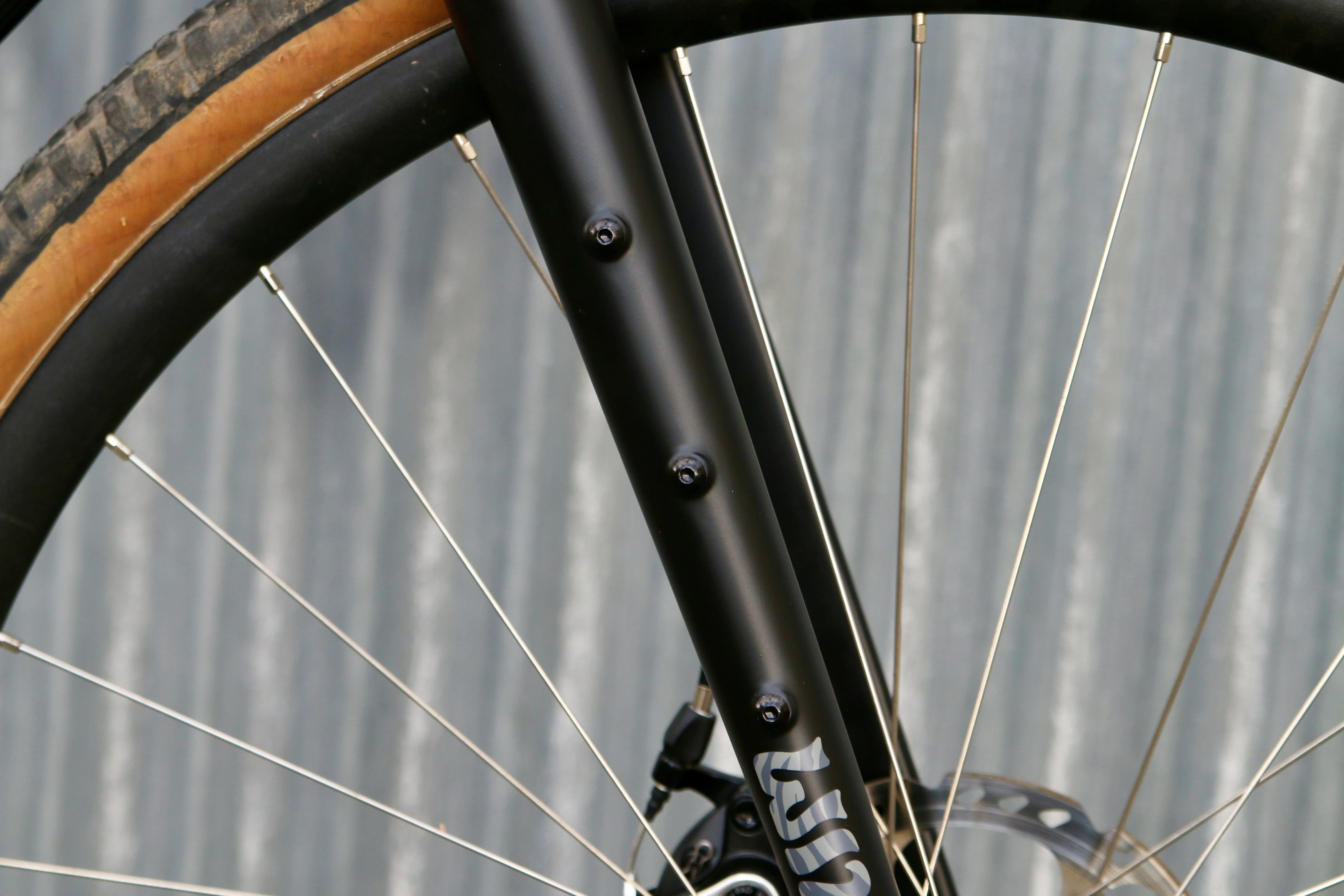

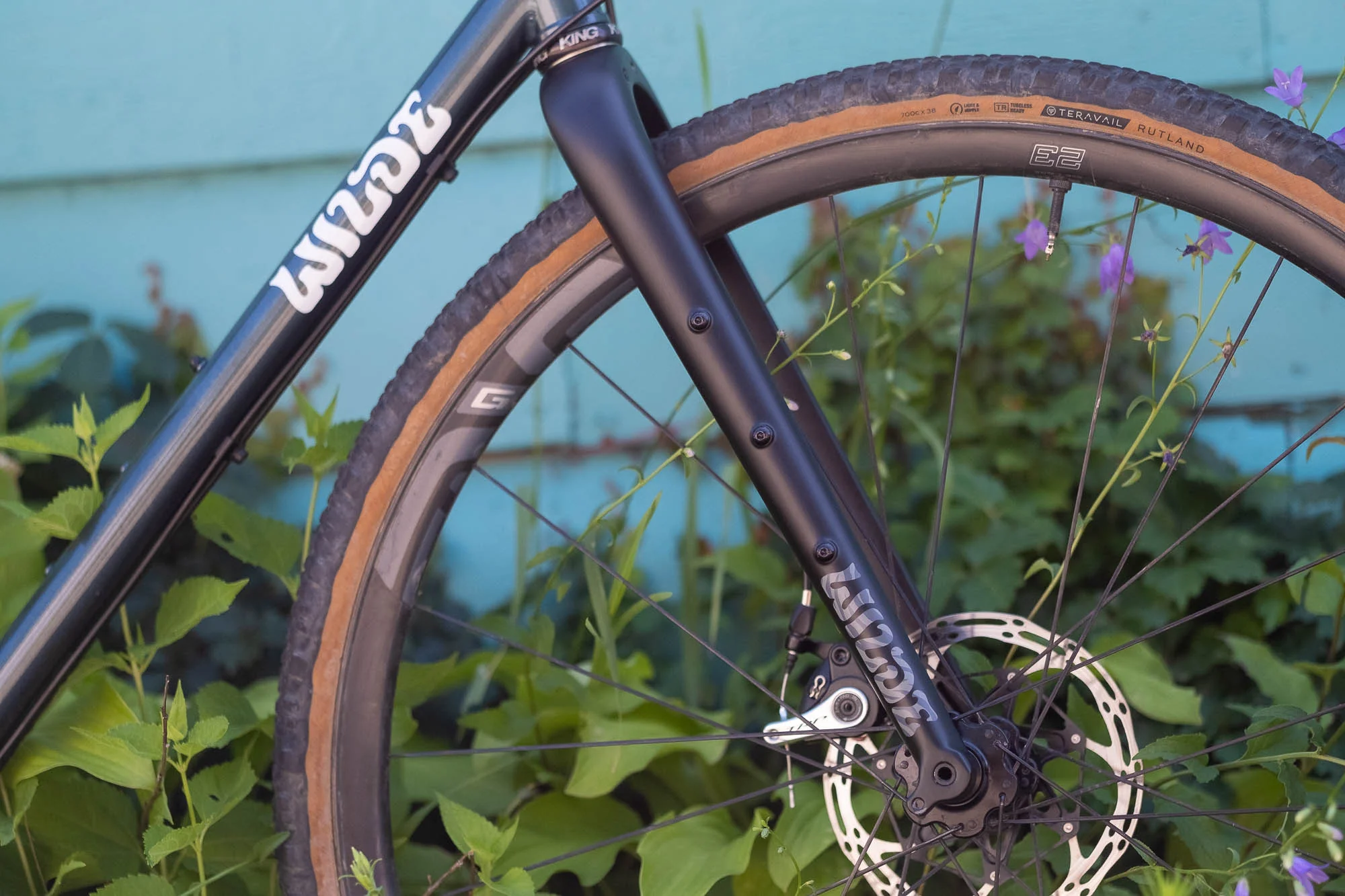

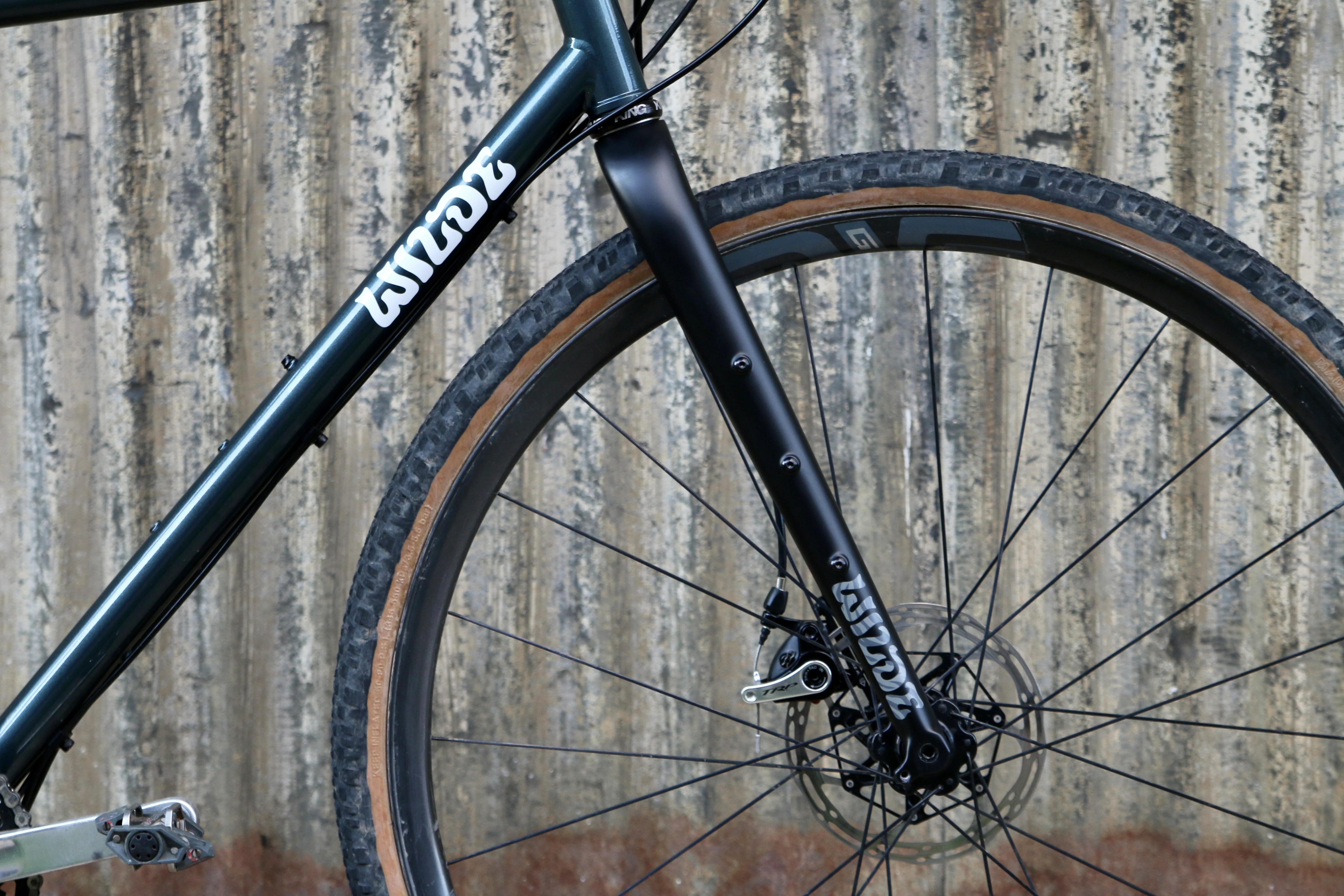

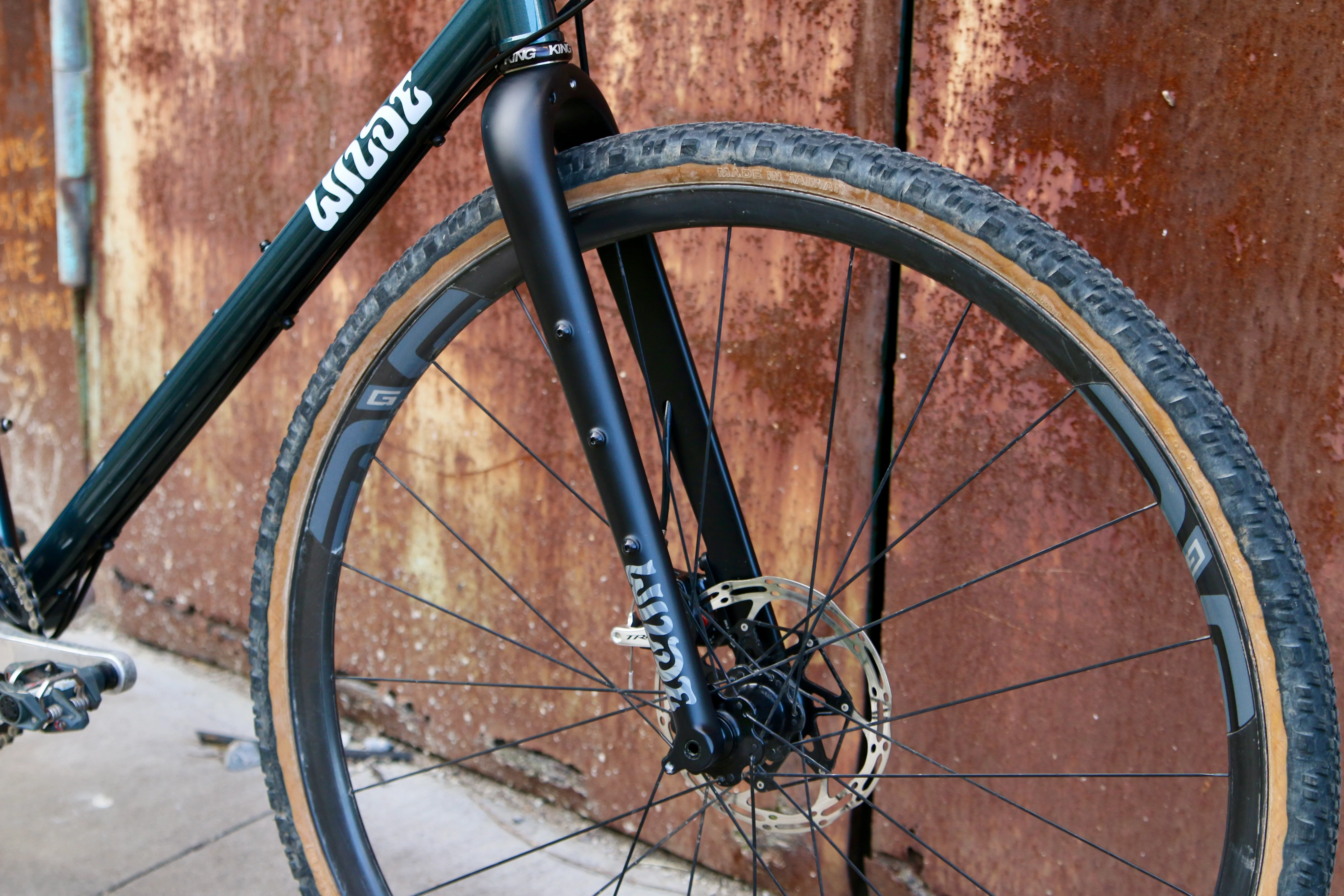

Three Pack Mounts

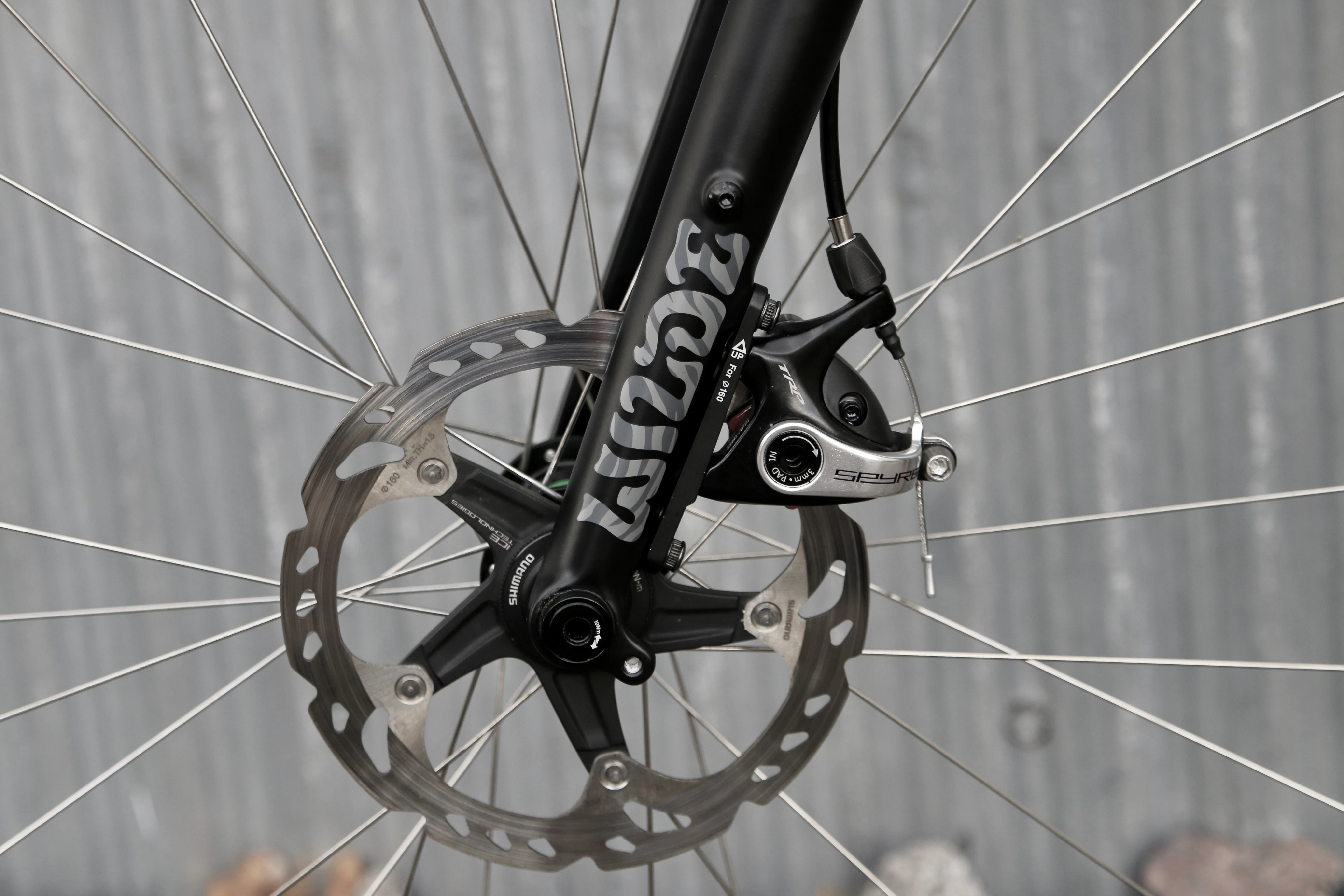

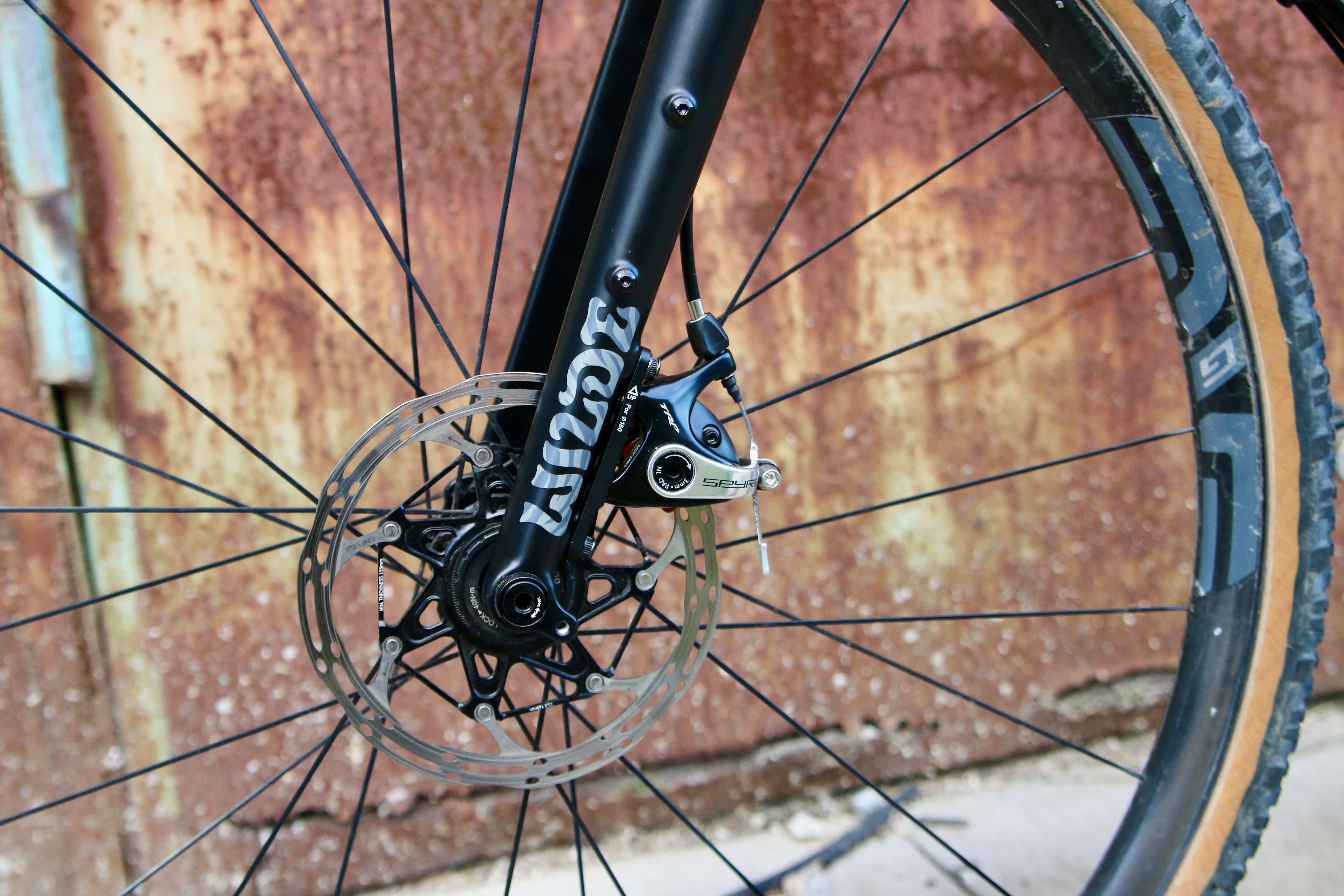

Flat Mount Brake
Thru Axle - 12x100mm

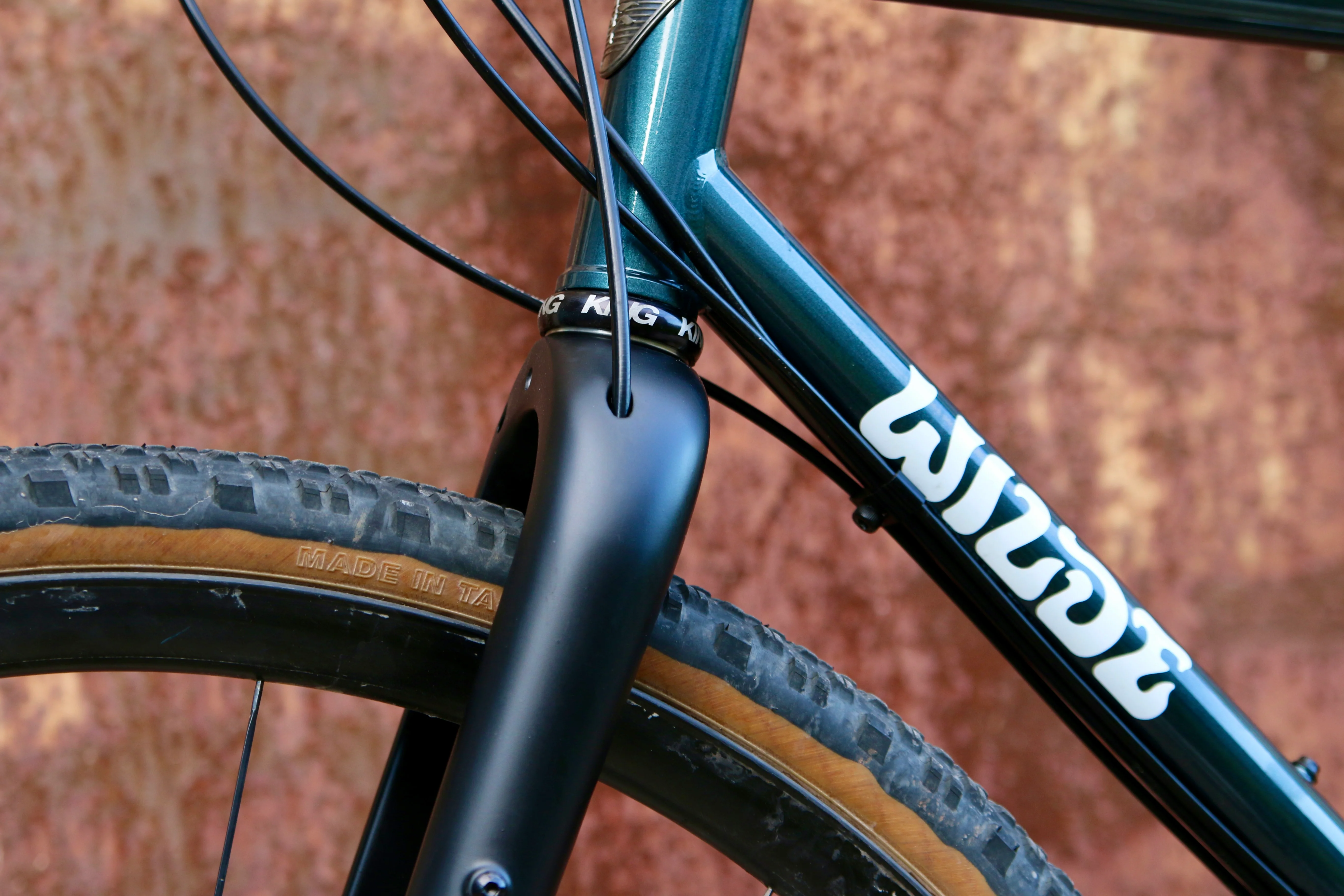

Internal Brake Routing
Internal Dynamo Routing
Fender Mounts

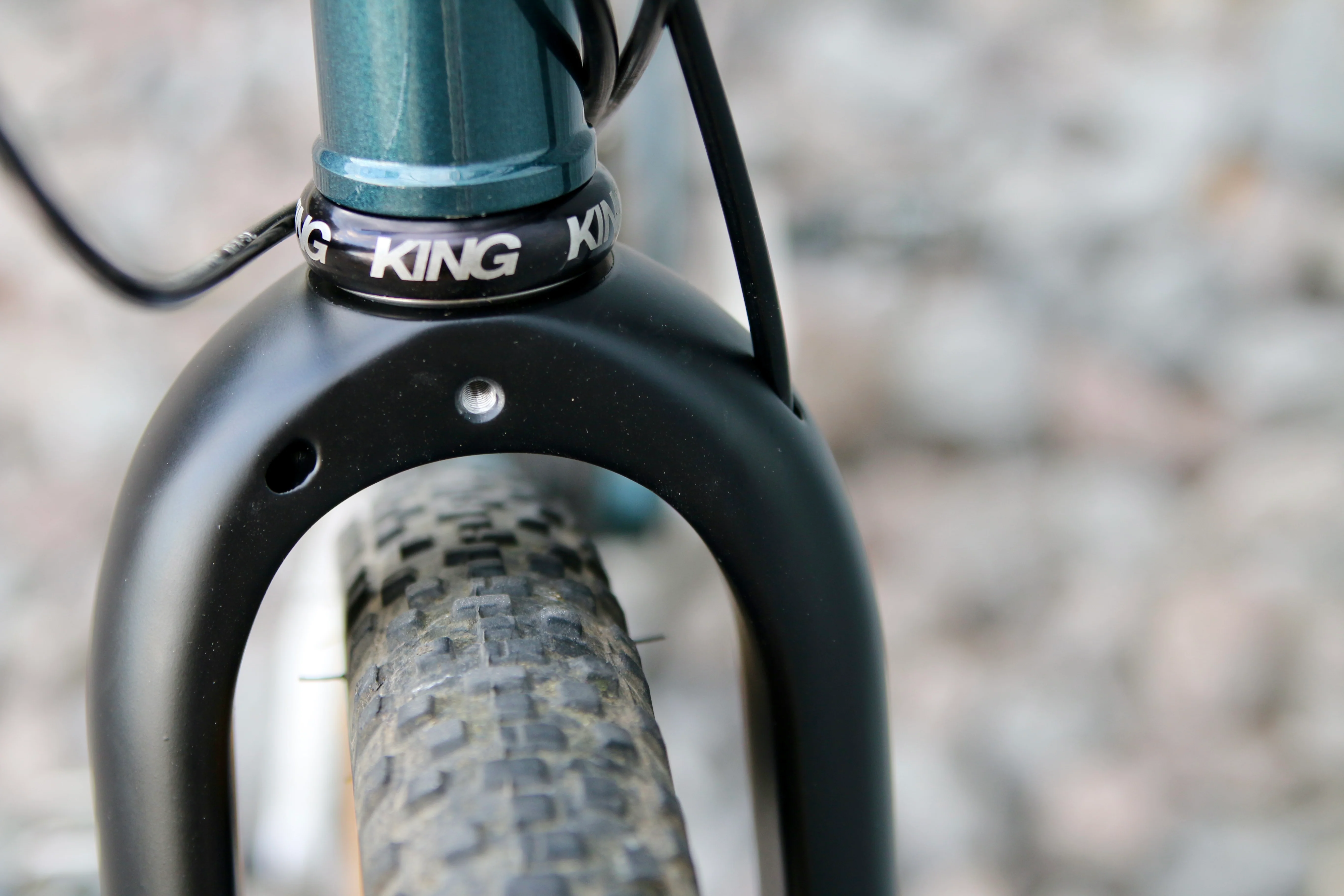

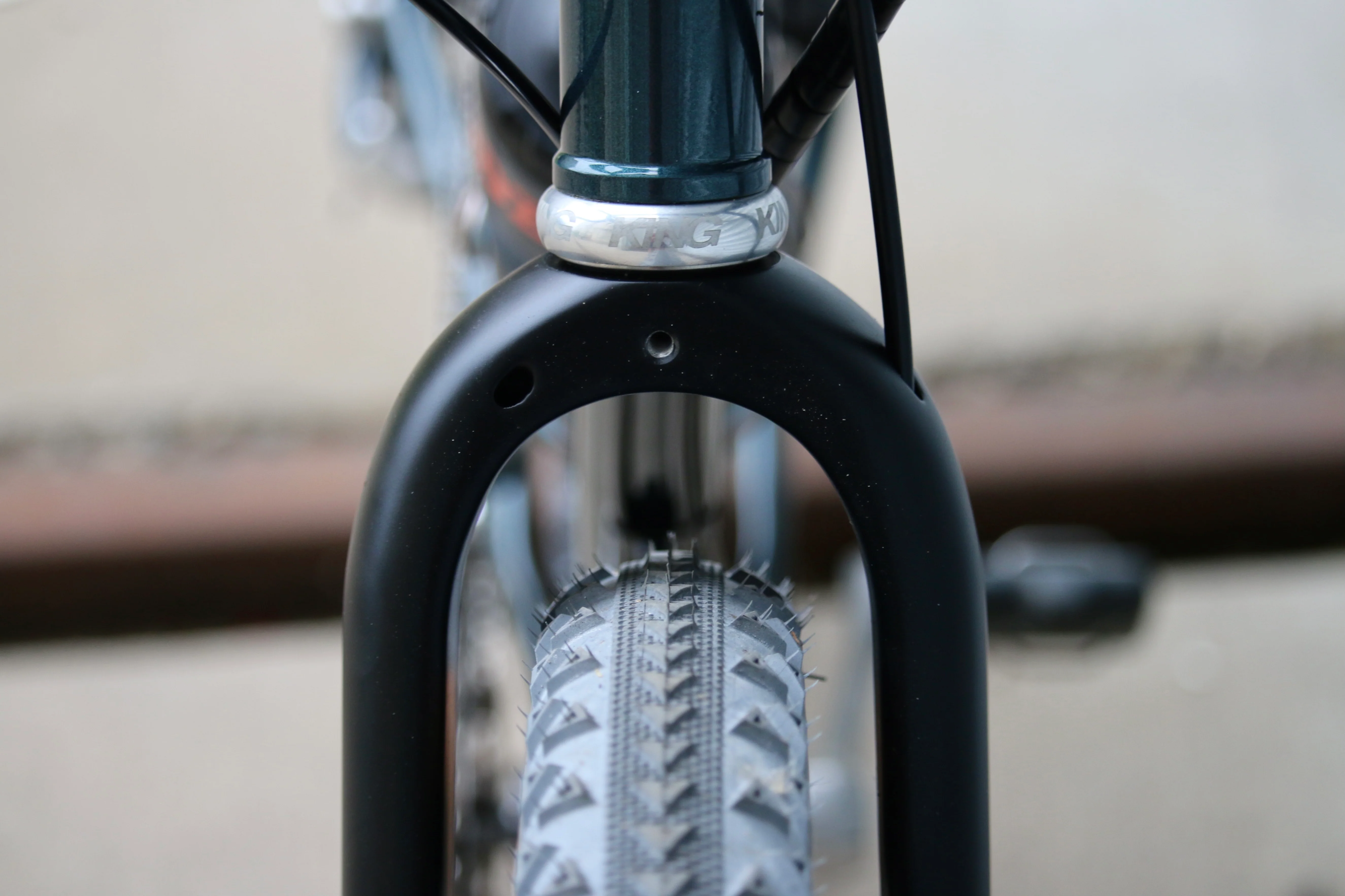

Fully Threaded Center Mount

Specs
Fork Weight: 470g with uncut steerer
Tire Clearance: 700c X 2.2" or 27.5" X 2.3"
Axle to Crown - 398mm
Rake - 49mm
Steerer - 350mm length, 1 1/8" straight
Spacing - 100mm
Axle Length - 130mm 12 x 1.5
Rotor Compatibility - 140mm or 160mm

Capacity
Three Pack Mount - 6 lbs per side
Platform Rack - 20 lbs

Recommended Maximum Rider Weight 240lbs
